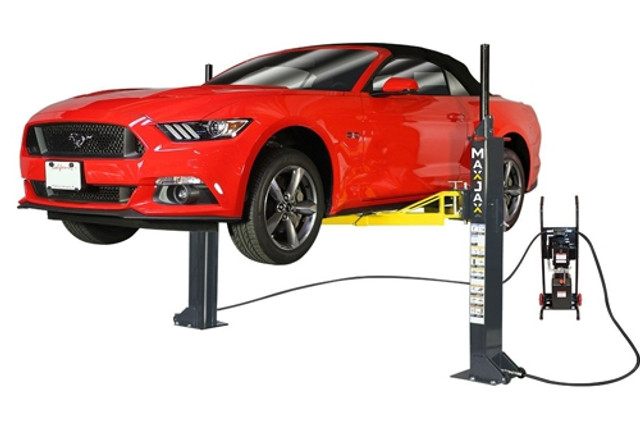

MaxJax® M7K Portable Two Post Garage Lift - Ultimate Package

For Free Shipping Requirements -- See details

Limited Time Offer Sale Price Valid thru Dec 31st or While Supplies Last!
$
Sale Price: $4,320.00
Qualifies for FREE SHIPPING!
You save $!
This product qualifies for FREE SHIPPING!
Product Code: 5175572
UPC Code: 849672023616
Choose your options:
Delivery Options
Lift Gate Delivery?(required):
Residence or Business?(required):
Delivery Notice
24 Hour Delivery Notice(required):
MaxJax® Optional Accessories
#5215912(optional):
MaxJax® M7K Portable Two Post Garage Lift - Ultimate Package

Supersedes MaxJax™ M6K, MX-6 & M6

download manual

To View or Download the Installation Manual download manual

The Patented One-of-a-Kind MaxJax® Portable Car Lift Safety Features from the Ground Up.

Perfect for ADAS
Newer vehicles are constantly becoming more and more advanced. They’re also becoming more complicated to service with all their new upgrades. ADAS (Advanced Driver Assistance Systems) includes handy features such as forward collision warning (FCW), lane departure warning (LDW), automatic emergency braking (AEB), and more. When performing ADAS calibration you’re telling sensors where to look, and with the complex nature of the systems, you’re going to want to make sure to have as precise readings as possible. To perform these calibrations, you’ll need plenty of space around the vehicle and you’ll need it to be perfectly level, and that’s where the MaxJax M7K comes in. Since it’s portable, you can simply position it in an optimal area to make sure you have plenty of unobstructed space. Some will perform calibrations while the vehicle remains between a two-post lift, but sometimes the posts could get in the way of the sensors. With MaxJax, you retain a larger floorspace.

Pop-Up Bay Ready
You never want to lose out on business due to not having enough space. Take advantage of the portability offered with the MaxJax and you’ll be able to create pop-up bays on demand. You can virtually double your work area when you need to. Unlike standard two-post lifts, you can easily set your MaxJax aside when you don’t need the extra space.

MaxJax is protected by one or more patents or claims of patents in the U.S. and elsewhere. This is provided to satisfy the virtual patent marking provisions of various jurisdictions, including the virtual patent marking provisions of the America Invents Act, as codified in 35 U.S.C. § 287(a).

PATENT NO. US 8.256.577 B2 and PATENT NO. US 9.150.395 B2

Benefits of the MaxJax
An impressive lifting capacity is just the start of what sets the M7K apart from the competition. Its extensive list of features is there to make sure you get the most bang for your buck. Every MaxJax unit is loaded with the right features that make it the best choice when looking for a new car lift. Read through to check out everything this car lift has to offer, and you’ll easily come to the conclusion that the MaxJax is the real deal.

MaxJax M7K clear-undercar-access

Clear Undercar Access
Want under-car clearance without having to rely on a permanent installation? That’s where MaxJax comes in! No other low-rise or mid-rise lift system provides more under-car clearance and unobstructed floor space than the MaxJax lifting system. Now you can easily access engine undersides as well as critical components like transmissions, drive-shafts, starters, differentials, or anything else that would require under-car access.

MaxJax M7K portable 2-Post

Portability
A two-post car lift with built-in wheels that allows you to use the lift when you need it, then conveniently store it out of the way when not in use keeping your garage and vehicle lanes clutter-free.

MaxJax M7K easy stow away

Stow to Go in Less Than 15-Minutes
Internally threaded recessed drop-in anchors and quick-connect/disconnect hydraulic couplers provide for fast and simple set-up. NOTICE: Before drilling into post-tension garage floors, always consult a building engineer for determining cable locations and where to avoid drilling.

 MaxJax M7K Hydraulic Flow Divider

Works like Magic
A robust, gear-type flow divider is the heart of the MaxJax system, providing consistent, equalized lifting. The specially designed flow divider/combiner is a positive-displacement fluid control device which allows precise distribution of hydraulic power to both columns even if load balance or pressures change.

MaxJax M7K mobile power cart

Mobile Power Unit Cart
The great thing about our standard mobile power unit cart is that it’s small enough to be stored out of the way and it features a storage area for the hydraulic hoses. The hydraulic power unit uses a single-phase motor that requires 110-volts AC and a 23-amp breaker. The industrial grade power cord is 6-ft. long. A simple push-button switch raises the lift, and a push lever controls the lowering. Simple quick-disconnect hoses can be positioned easily for single or dual column operation. .

MaxJax M7K Stackable Adapters

Adjustable Lifting Arms & Stackable Adapters
Increases overall arm positioning for lifting a variety of different vehicles that have Uni-body construction, OEM recommended pick-up points, or wide and/or narrow frame configurations. Every MaxJax order includes four (4) medium height adapters and four (4) stackable standard lift pad adapters.

MaxJax M7K Portable Car Lift Low-Profile Arms

Low-profile Arms
Fit under the lowest compact and sport vehicles or custom motorcycles with lowered frames.

MaxJax M7K automatic arm restraints

Automatic Arm Restraints
Each arm is equipped with durable arm restraints that automatically engage each time the lift is raised. When the lift is lowered, the gear type arm restraints automatically disengage to provide easy positioning of the lift arms.

MaxJax M7K maintenance-free slide blocks

Maintenance-Free Slide Blocks
Rather than using roller bearings that need constant lubrication and maintenance, we use futuristic full-floating UHMW ultra-high molecular weight polyethylene load bearings that never need lubrication and last virtually the life of the lift.

MaxJax M7K single-piece columns

Single-Piece Columns
We purposely manufacture the columns using single-piece construction for added strength and less fatigue under heavy load conditions.

MaxJax M6K Direct-Drive Technology

Direct-Drive Technology
By utilizing two low-pressure HVLP Direct-Drive cylinders, we've eliminated the need for lifting chains or screw mechanisms most commonly found on other lift designs. HVLP Direct-Drive technology offers better reliability, smoother operation and less maintenance.

MaxJax M6K Industrial Grade Hydraulic Cylinder

Industrial-grade Hydraulic Cylinders
Integrated into every MaxJax® hydraulic cylinder is a one-piece, pilot fitted, machined steel piston wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminates any fluid bypass. The micro-smooth chrome-rod is machined from high yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life.

MaxJax M7K Optional Motorcycle Adapter Kit

Optional Motorcycle Adapter Kit
Our optional motorcycle adapter kit allows you to safely lift motorcycles, ATV's or other motorized vehicles to a comfortable working height.

  • Patented One-of-a-Kind MaxJax® Portable Car Lift Safety Features from the Ground Up
  • 7,000-lbs Lifting Capacity
  • No one in the industry has a more sophisticated and comprehensive research and quality control program than MaxJax, and our thousands of customers worldwide prove it.
  • Low-pressure HVLP Direct-Drive cylinders eliminate the need for lifting chains or screw mechanisms most commonly found on other lift designs.
  • Hydraulic cylinders feature integrated velocity-fuse safety valves.
  • A robust, gear-type flow divider precisely distributes hydraulic pressure providing consistent, equalized lifting.
  • Rugged safety lock bars are capable of holding three-times the rated lifting capacity.
  • Arm restraints automatically engage each time the lift is raised.
  • Detailed installation, maintenance and safety instructions accompany each MaxJax car lift.
  • MaxJax encourages all owners to know their equipment and to follow good safety practices when using any of our products. Your MaxJax car lift equipment has been designed and built with your safety in mind, but the ultimate responsibility for safe operation is with you, the operator.

Ultimate Package Includes

  • RD-9G 9-Gallon Upright Portable Oil Drain. For details Click Here
  • 5150027 Hi-Low Adjustable Reclining Creeper Seat. For details Click Here
  • 5215754 Frame Cradle Pads (Set of 4). For details Click Here
  • 5215752 5.5" Tall Height Adapters (Set of 4). For details Click Here

To View or Download the MaxJax Comparison Chart Click Here

Supersedes MaxJax™ M6K, MX-6 & M6

SpecificationsM7K
Lifting capacity7,000 lbs. (2,722 kg)
Max Load Per Arm1,750 lbs. (794 kg)
A - Overall Height89.5" (2,273 mm)
B - Height of Column64" / 1626 mm
C - Min. Pad Height5.5" (139.7 mm)
D - Max Lift Height (Pad Only)47.25" (1200.15 mm)
E - Max Lift Height w/3" Adapter50.5" (1,283 mm)
F - Arm Reach (Min - Max)26" - 40" (660 mm - 1,016 mm)
G - Typical Width (Outside of Base Plate)105" - 135" (2,667 mm - 3,429 mm)
H - Drive-thru Clearance74" - 104" (1,880 mm - 2,642 mm)
Locking Positions7 (every 3")
Time of full Rise45 Seconds
Motor110-220 VAC / 50-60 Hz. / 1 Ph. / 15 Amps
Shipping Dimensions (Standard Model)68" x 39" x 35" (1,727 mm x 990.6 mm x 889 mm)
Individual Column Weight300 lbs. (136 kg)
Shipping Weight (Standard Model) 980 lbs. (444 kg)

*The design, material and specifications are subject to change without notice. The MaxJax is protected by one or more patents or claims of patents in the U.S. and elsewhere. PATENT NO. US 8.256.577 B2 - PATENT NO. US 9.150.395 B2.

To View or Download the Baseplate Dimensions & Concrete Requirements Click Here

Click on Image Below to Enlarge it
MaxJax M7K 2-Post specifications diagram

TWO-POST LIFTS/FOUR-POST LIFTS LIMITED WARRANTY

To View or Download Dannmar's Limited Warranty Click Here

LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor'spublished specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TOTHE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER

Duration: From the date of purchase by original Purchaser or 36-months months from the date of shipment by Dannmar or whichever comes first
  • Three Year (36‐Months) Warranty on the lift structure [*] [**]
  • One Year (12‐Months) Warranty on the hydraulic cylinder(s) and power unit [*] [**]
  • One Year (12‐Months) Warranty on operating components [*] [**]
  • One Year (12‐Months) Warranty on electrical components (excluding power unit) [*] [**]

Limited Warranty

  1. Who gives this warranty (Warrantor): Dannmar, 1645 lemonwood dr. Santa Paula, CA 93060
  2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
  3. What products are covered by this warranty: Any Dannmar Two-Post or Four-Post car lift***
  4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
  5. What is not covered under this warranty:
    • Freight and shipping charges related to warranty performance
    • Onsite labor or factory labor associated with warranty performance
    • Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner’s manual(s) supplied.
    • Any damage caused by overloading Product beyond rated capacity.e.
    • Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
    • Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
    • Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
    • Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.i. Rusted components due to improper maintenance or corrosive environments.
    • Cosmetic defects that do not interfere with Product functionality.k. Damage due to incorrect voltage or improper wiring.
    • Any failure that results from improper installation or use not according to specifications.
    • Damage caused by disasters such as fire, flood, wind, and lightning.
    • Damage caused by unauthorized attachments or modifications
  6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, hasmal functioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12months only.
  7. Responsibilities of Purchaser under this warranty:
    • ovide dated proof of purchase and maintenance records.
    • In some cases, components may be required to be shipped to the nearest Dannmar Authorized Service Center. Freight costs, after12-months, must be borne by the Purchaser.
    • Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
    • Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
  8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

As determined by Warrantor in its sole discretion**For all Dannmar brand Two-Post or Four-Post Vehicle Service Lifts (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 6/1/2020.
