RANGER DST-2420 Dynamic Wheel Balancer

Supersedes DST-1200

The new and improved Ranger DST2420 wheel balancer now handles wheels up to 30” diameter. It is a highly accurate and dependable no-frills balancer that features our proprietary Digital Sensor Technology for critical reliability and repeatability.From one-bay shops to high-volume tire stores, the DST2420 is built with a gritty toughness that puts out perfectly balanced wheels day after day, around the clock. Like all of our DST Series wheel balancers, it’s a zero tolerance performer that features our proven Direct-Axis drive system, accurate to within hundredths of an ounce ensuring wheels are balanced vibration-free.

The DST2420 automatically calculates the exact weight needed to achieve an optimal balance for almost every tire and wheel configuration on the planet and brightly displayed LED’s mark the exact amount and location in just six seconds. A full-menu of time saving features that includes Dynamic, Static, and Performance Alloy settings allow you to balance OEM wheel configurations and performance wheels with minimal effort and speed.

Digital Sensor Technology
Our highly accurate Digital Sensor Technology features a 16-digit digital signal processor and single-chip technology that increases productivity and offers unprecedented speed and accuracy--especially when using sophisticated balance and weight placement techniques required for newer high-tech OEM and aftermarket wheels.

Single-chip circuit board architecture provides an inherent performance and reliability advantage compared to multi-chip implementations of the same functionality. In addition to overall latency reductions, the single-chip architecture significantly boosts device throughput. An extremely fast dedicated hyper transport protocol allows data to communicate with the micro-processor at much faster speeds. This solution offers unmatched integration of features and functionality and results in lower power consumption and dissipated heat.

Multi-Directional Quartz Piezoelectric Load Sensors
The DST2420 uses highly precise dual-component piezoelectric quartz load sensors combined with a single digital rotation encoder that measure both longitudinal, transversal, and shear effects for multi-directional force unbalance detection. The piezoelectric force sensors used on the DST2420 are very sensitive and offer long-term stability and freedom from fatigue for a service life that is virtually unlimited. The high rigidity quartz crystal sensors result in very high frequency detection in all three directions of measurement.

FEATURES

Quick and Precise Set-Up
Multi-size center cones and a full rubber perimeter no-mar “Quick-Nut” bell adapter makes mounting wheels fast and easy and minimizes the risk of costly wheel damage.

Mounting Cone Package
The DST2420 tooling package not only includes our standard car and light truck cones, but a heavy-duty truck cone and spacer ring as well. This well equipped package includes three automotive and light truck cones; 1.75” - 2.75”, 2.75” - 3.50”, and 3.50” - 4.25”, and one truck cone 4.50” - 5.00”.

Weight Optimization
The DST242000 automatically calculates the minimum amount of weight needed to achieve an optimal balance for the tire and wheel configuration so you use less weight which adds up to real savings and increases your bottom line.

Wheel Graphic Interface
A touch-pad display panel features tire and wheel assembly graphics to help simplify speed entry of wheel data and helps guide technicians through balancing procedures. Operator function keys are labeled with simple, easy-to-read icons helping operators identify and command all balancing functions.

LED Rolling Wheel Weight Displays
Bright LED weight placement indicators show weight positions as the wheel is gently rolled to exact top-dead-center. Tiered weight placement indicators help identify out-of-sight weight placement such as split-weight or hidden “behind-the-spoke” techniques. Aids with clip-on, and tape weight placement at precise locations for zero-on balancing every time.

• Highly precise 64-bit architecture and single‐chip technology. Precision DataWand™ and inner data set arm allows you to quickly and automatically enter all wheel parameter settings in less than three seconds.
• Serpentine poly-V belt features a polyester-aramid fiber composite core to resist degradation of functional performance under extreme operating conditions. Poly-V belt mates perfectly with motor and spindle sheave for continuous tension and distribution.
• (1) Dynamic, (2) static, (1) standard alloy and variable alloy setting that enables you to select the exact weight placement location you choose for the specific wheel being serviced. Easily configured with the simple push of a button for a variety of wheel styles and designs.
• Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors.
• Low RPM balancing speed and rapid six-second cycle time.
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• An audible alarm and brightly displayed LED’s identify exact weight amounts and precise positioning for perfect balancing.
• Tiered weight placement indicators help identify out-of-sight position weight placement such as split-weight or hidden “behind-the-spoke” techniques.
• Wheel restraint pedal secures wheels at precisely 12-o’clock for easier servicing and proper weight placement.
• LED inner wheel target light automatically illuminates the interior of the rim and helps identify the exact weight placement location. Auto-activates each time the wheel restraint pedal is depressed.
• Manual or automatic start when hood is lowered
• Self calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools.
• Precision-machined, hardened-steel 36-mm shaft (ACME thread 30-degree 3-P).
• Quick-release hub nut for dramatically reduced set-up times

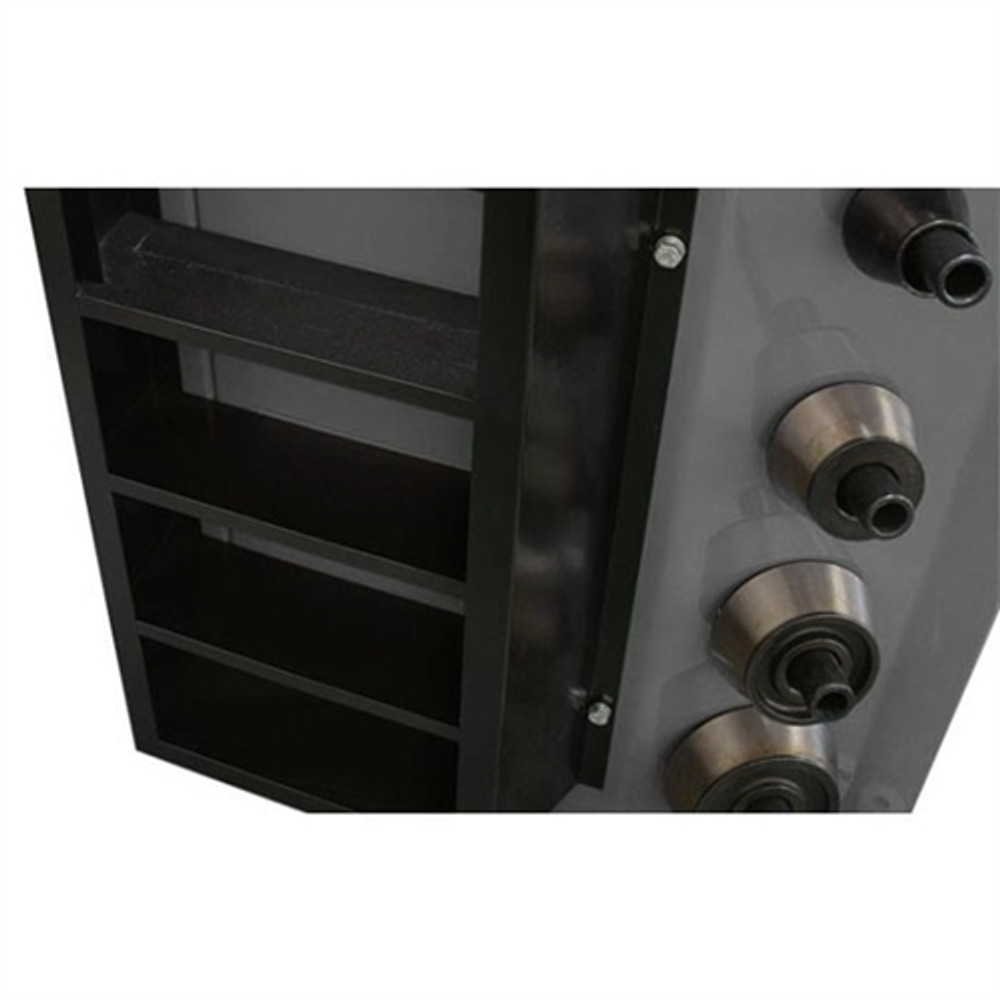

• Side cone storage pegs keeps mounting cones readily available
• Open-sided hood design allows for a broader coverage of tire shapes and sizes
• Wheel Weight Starter Kit – Free samples of Ranger steel wheel weights are included.

Includes

• Starter Kit
• One bulk roll of 100 silver adhesive steel tape weights
• One bulk roll of 100 black adhesive steel tape weights
• One starter box of mixed clip-on steel weights

Wheel Service Equipment Warranty

The Best Warranty in the Business - You Have Ranger's Word

Duration: From the date of purchase by the original Purchaser or 24-12 months from the date of shipment by Ranger or whichever comes first.

Two Years (24-Months) Warranty on equipment structure*

One Year (12-Months) Warranty on operating components

One Year (12-Months) Labor Warranty on site or at factory

One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance

Limited Warranty

*Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.

**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses.

***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.

Limitation of Liability

BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak/Ranger may modify these terms and conditions at any time byeither providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
