Nothing Faster or Easier than an Automatic Pipe Bender
The BendPak 1302BA series of pipe benders features an ergonomically placed and highly sophisticated keypad display that can record bending patterns for accurate and repetitive use. For extremely busy shops, an automatic pipe bender will save time and make it easy to duplicate results.

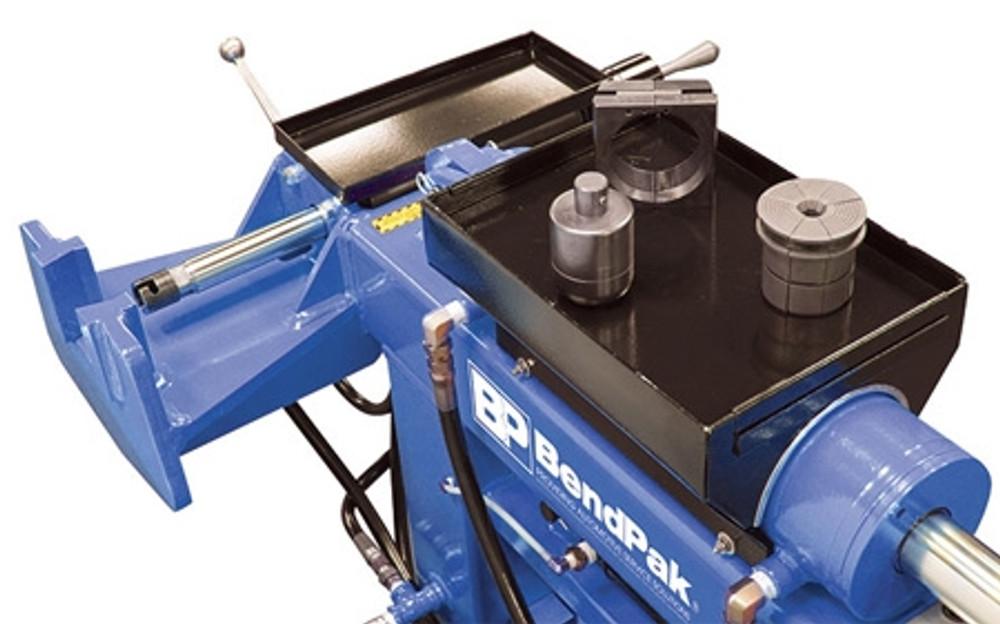

Quick-change bending dies
BendPak pipe benders feature twist-lock tooling and quick-change bending dies that are absolutely one of our most copied designs across the entire industry. We’re flattered, really, but if you want the best, most consistent bends, make sure you choose BendPak.
Digital control
Hardcore users will appreciate the convenience of our digital control that gives you digital die angle readings right up front. An advanced, programmable mini-computer is safely enclosed within the front upright of the bender, allowing effortless fabrication on virtually every original equipment exhaust system. The program data control board manages all bending functions, automatic or manual, and stores up to 99 different bend depths.
Long-stroke bending cylinder
An extra-long, 14” bending cylinder replaces pusher block extensions for small-radius die bending operations. The cylinder, as on all our pipe benders, can be retracted even further if you need more room to change dies or take out bent tubing.
Clampless swager
A clampless swager comes standard on our pipe benders. Capable of putting out more than 30,000 lbs. of force, your end forming will be fast and extA clampless swager comes standard on every pipe bender we make. 30,000 lbs. of force offer quick and precise end forming. Faster setups, more accurate bends—what more could you ask for? I.D. expansions, O.D. expansions, slip-fits, flares, ball-joints, reductions and manifold flanges are a cinch with BendPak tooling. To make things even easier, all of our pipe bender tooling is quick-release; you never see an outdated vise in the clamp assembly. Narrow-hinged collars simply drop into position and allow for flare tubing ends as close as 3". You’ll never worry about slippage, either, because the more pressure you put on the clamps, the tighter they grip.
Internal segment expander
Our internal segment expander is just as unique as our clampless swager and can be used for I.D. expansions, O.D. expansions, slip-fits, flares, ball-joints and manifold flanges. The buttress canister has a single position setting for all I.D. expansions, but can also be adjusted for special sizing requirements. A single arbor is used for all tubing sizes 1.5" - 3". The clampless swager and internal expander make completing end-finishing operations with unparalleled ease: reducing, internal swaging, flares, flat flares, ball-joints, etc. The pipe bender is equipped with a double-ended cylinder for both the clampless swager and segment expander. A single control handle operates the cylinder and is placed toward the middle, letting operators stand comfortably in one location and still operate both sides.
Electric foot switch
For added convenience and versatility, we’ve included an independent remote foot switch that lets you conduct manual bending operations while standing in front of the bending head or up to 4' away from the bender. This is especially useful when handling large tubing. Our pipe bender foot switches are industrial-grade and completely covered to keep you safe at all times during use.
Duration: From the date of purchase by original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first
Five Years (60-Months) Warranty on equipment structure
Two Years (24-Months) Warranty on the hydraulic cylinders
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
3. What products are covered by this warranty: Any BendPak Tubing and/or Pipe Bender **
4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
5. What is not covered under this warranty:
a. Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
b. Any damage caused by misuse or abuse
c. Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
d. Items considered general wear parts such as rubber pads, pad adapters, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
e. Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
f. Component failure caused by rain, excessive humidity, corrosive environments or other contaminants
g. Rusted components due to improper maintenance or corrosive environments
h. Cosmetic defects that do not interfere with product functionality
i. Any incidental, indirect, or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of BendPak Inc. product
6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
7. Responsibilities of Purchaser under this warranty:
a. Provide dated proof of purchase and maintenance records
b. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
c. Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote
addresses.
**For all BendPak Tubing and/or Pipe Benders (excluding specialty models for particular purpose manufactured on or following
8/1/2010.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered
damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other
than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger
under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under
these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic
consequential damages. All expressed and implied warranties, including the implied warranties of merchantability and fitness for a particular
purpose, are limited in duration to the coverage period. No warranties, expressed or implied, will apply after this period. BendPak may modify
these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on
www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
