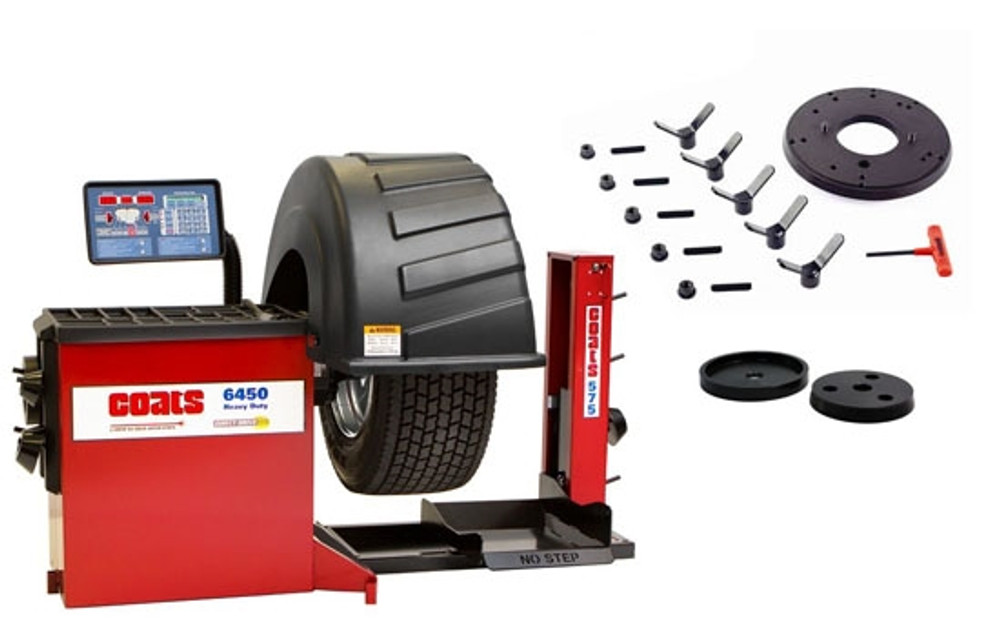

COATS® 6450-3D Heavy Duty Truck Wheel Balancer Kit

The COATS® 6450-3D Wheel Balancer provides heavy-duty performance with a push of a button.

Take control of heavy-duty jobs with the COATS® 6450-3D. Based on the proven 6401 model and loaded with advanced features from the shop favorite 1250-3D, the COATS® 6450-3D is the new standard in truck wheel balancing. With the push of a button, you're in complete control. Load wheel parameters and automatically index the wheel to the second weight position. And with the Stop and Lock feature, you can bring the wheel to the first weight position and hold it until the weight is installed.

The Model 6450-3D also comes with an AC Vector Drive motor, which shaves 20 seconds off a typical 22.5" wheel spin. And with the laser weight placement capability, you'll never spin another truck wheel wondering where that Tape-A-Weight™ should go. Tackle the most demanding tire and wheels at the push of a button with the COATS® 6450-3D.

The 6450 is unlike other heavy-duty balancers which simply change the round-off when switching between heavy duty and passenger car work. The COATS® 6450-3D stores and runs two INDEPENDANT SETS of calibrations. So, in addition to changing round-offs, these machines dynamically adjust balancing parameters based on the job at hand. It's like having two machines in one without any trade-offs inherent to other heavy-duty offerings.

With the addition of DCS* (Dual Calibration Software), the 6450 series is now the most accurate heavy duty balancer in passenger car and light truck models on the market today. The 6450 is ideal for municipal shops servicing police cars to fire trucks to transit vehicles. It is also the right machine for front line retail service, from delivery vehicles to tractor trailers. DCS gives 6450's the widest and most accurate range; the AC Vector Drive gives the 6450s speed and ease of use, while the Coats® Direct Drive motor provides durability and years of trouble-free service.

• Auto Data Entry for all three parameters with one touch. Just drop the hood and go.
• Auto indexing automatically moves the wheel to the required weight positions.
• Stop and Lock feature locks the spindle firmly in place for easier, more accurate weight placement.
• Powerful 1.5HP direct drive motor shaves 20 seconds off a typical 22.5" spin.
• DCS* ensures the 6450 is the most accurate heavy duty balancer in car/light truck mode on the market, like two balancers in one.
• 2 parameter auto data entry system for clip weight and 3 parameter for Tape-A-Weight®
• 500 lbs. Met Lab / UL approved with 52" wheel capacity.
• Designed for front line, high-volume balancing.
• Easy-to-read LED readouts.
• 2” (51mm) heavy duty arbor on Coats proven direct drive motor
• Laser-guided direct Tape-A-Weight placement

* DCS™ – Dual Calibration Software – is a NEW feature available exclusively on Coats 6450 heavy-duty wheel balancers. Unlike other heavy-duty balancers which simply change the round-off when switching between heavy duty and passenger car work, the Coats 6450 series stores and runs two INDEPENDENT SETS of calibrations. So in addition to changing round-offs, these machines dynamically adjust balancing parameters based on the job at hand. It’s like having two machines in one without any trade-offs inherent to other heavy-duty offerings.

6450 Kit Includes

575 Heavy Duty Wheel Lift (85607960)
The Coats 575 Wheel Lift offers reliable lift capability for the Coats 6450-2D & 6450-3D Wheel Balancers

• 500 lb capacity
• Air Operated
• Bolts to 6450 balancers for exact alignment
• Wide platform to support the largest wheels that can fit on the balancer
• Full frame base for superior stability
• Carriage design like a two post vehicle lift for durability
• Extra adapter storage where the operator needs it
• Controls are on the front of the lift for minimal operator travel

143935 Budd Wheel Adapter (8143935)
Large Stud Piloted Budd Wheel Adapter for Heavy Duty Balancers, Bolt Patterns 8 x 275mm, 10 x 11.25" & 10 x 13-3/16" (335mm)

109877 Budd Cone and Backing Plate Kit, 2" (8109877)
2" I.D. for 6401 / 6450 Spacer & Cone for 19.5" hub centered Budd style wheels with centerhole from 8.52" to 8.89" (216.41 - 225.81 mm)

• 5 year warranty on transmission
• 1 year parts warranty
• 6 month labor warranty
