Challenger VLE10 Versymmetric® ALI 2 Post Car Lift 10,000 lbs

Challenger VLE10 Versymmetric® ALI 2 Post Car Lift 10,000 lbs

Supersedes LE10

To view or download the lift inspection guide Click Here.

Challenger Lifts’ Versymmetric® technology brings flexibility to any service bay while also ensuring the safe lifting of any vehicle. Versymmetric® lift technology, established in 1992 by Challenger®, combines a Symmetric and an Asymmetric lift into one!

Safely accommodating vehicles from compact cars to full size trucks, our Versymmetric® lifts can do it all by using heavy-duty columns and arms. Meaning you can service a wide range of vehicles all from the same service bay.

Whether you’re looking for efficiency or are just simply short on space, this Challenger Lift is right for you.

• Challenger’s Versymmetric® Technology, with 3-Stage offset front arm design, allows for the safe symmetric lifting of trucks or asymmetric lifting of other small vehicles within the same service bay.
• Direct Spot Technology™, created by the Versymmetric® offset arms, allows you to save time on spotting a short wheelbase vehicle by eliminating the need to struggle with the tires.

Any Vehicle. One Bay.

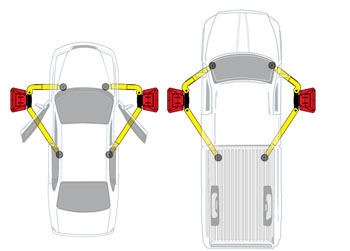

The left image shows a standard passenger car best lifted asymmetrically to allow the technician easy access to the car’s interior. The right image shows a truck with a possible “load” in the back. This type of vehicle lifts best symmetrically as the front arms position forward, distributing the weight evenly between the two columns. While each image demonstrates a different way of lifting, with Versymmetric®, both methods are possible all from one bay.

• 3-Stage Versymmetric^® front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay.
• 11.875” standard height fits in service bays with 12’ ceiling height.
• Double telescoping screw pads with rubber foot pad.
• Padded overhead shut-off system prevents vehicle damage.
• Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts are now standard on the VLE10.
• Rubber door guards protect vehicle from door damage.
• Premium powder coat finish provides long-lasting durability.
• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

Supersedes LE10

¹Lift capacity ratings are based on loads equally distributed on all four arms.
²Lifting and lowering speeds may vary depending on the weight of the vehicle.

LIMITED WARRANTY

Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment whenrepairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity isauthorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.

Note: Warranty registration must be completed online at https://www.challengerlifts.com/register-your-lift/ or warranty period will beging from invoice date of lift purchase.
